The rise of algebraic extensions

In the post about number theory and lattices, we tried to determine when is the Euclidean distance in \mathbb{C} is actually a Euclidean norm and we were led to study the embeddings of rings such as \mathbb{Z}[i], \mathbb{Z}[\omega] as lattices in \mathbb{R}^2. As mentioned there, not all rings can be nicely embedded in \mathbb{C} as lattices, and in this post we will try to find the “right” way to view them as lattices, and what other algebraic problems can be translated to this setting.

I will only assume basic knowledge about rings, and I will not assume any knowledge about algebraic number theory. I believe that the right order is to first learn about algebraic number theory and then see its connection to lattices. This being said, in my opinion the best way to show the result in this post is through lattices (and it is usually done in this way), hence it should not be problematic for those unfamiliar with the black magic of number theorists. For those who do want to do some reading first (or after), I recommend J.S. Milne great course notes.

Historically, a big part of algebraic number theory was developed in order to solve equations over the integers. Probably, the most famous is Fermat’s last conjecture (which later became a theorem), but before that, let us try to solve some more simpler equations that naturally lead to algebraic extensions of \mathbb{Q}.

Consider first the problem of solving x^2+y^2 = n where x,y are integers. If there exists a solution, then clearly we must have that n is an integer, but also it must be nonnegative. One last obvious but important property is that this equation cannot have infinitely many solutions, since |x|,|y|<\sqrt{n} (and sometimes there are no solutions).

The geometric interpretation of this problem is finding all the lattice points from \mathbb{Z}^2 which lie on the circle of radius \sqrt{n} around the origin. Since this lattice can be also viewed as \mathbb{Z}[i],  we can ask what does this problem mean in this setting. As usual, any sum of two squares can (and should!) be written as (x+iy)(x-iy)=x^2+y^2=n, so a solution to this equation is equivalent to decomposing the number n over the ring \mathbb{Z}[i]. This reformulation, and a little bit of knowledge about the ring \mathbb{Z}[i] leads to a full description of the integers n which have a presentation as a sum of two squares (for n=p prime, one way to prove an existence of a solution is Minkowski’s theorem). A similar question can be asked about the equation x^2+dy^2=n, d>0, which in a similar process leads us to consider the ring \mathbb{Z}[i\sqrt{d}].

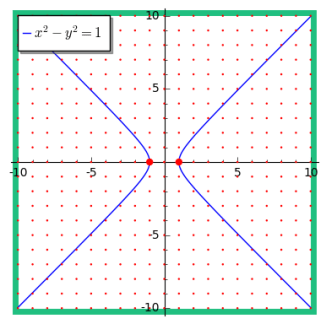

To make things interesting, we can consider unbounded curves, for example the hyperbola x^2-y^2=n,\, n\neq 0. While it is not clear that there are only finitely many lattice points on this hyperbola, as in the circles\ellipses examples, it is still true. Indeed, if there are infinitely many solutions, then we can assume that they are positive so that x+y\to \infty. Writing the equation as (x-y)=\frac{n}{x+y} we see that x-y\to 0. As these are integers, they must be equal so that x^2-y^2=0\neq n. As the image below shows, there are many integral points close to x^2-y^2=1, but there are only two points on this curve (and a similar claim is true for general n\neq 0).


What happens if we consider instead the equation x^2-2y^2=n? Following the examples up until now, we will start with the decomposition (x-\sqrt{2}y)(x+\sqrt{2}y)=n so that we’re looking for solution in \mathbb{Z}[\sqrt{2}]. The reason this trick usually helps, is because it is easier to work with just multiplication in a ring (think the unique factorization for integers), than multiplication and addition as in the original equation. As in the case x^2+y^2=n, we can ask for which n there is a solution, but let us concentrate on the problem where n=\pm 1.

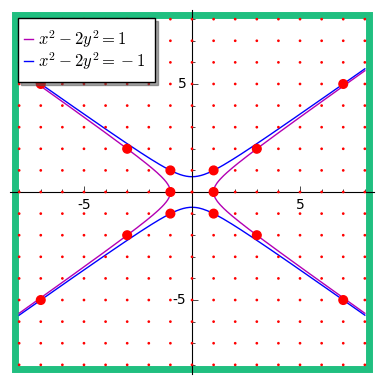

The geometric interpretation of x^2-2y^2=\pm 1 are the lattice points from \mathbb{Z}^2 contained in two hyperbolas. But now we have another way of viewing it as (x-\sqrt{2}y)(x+\sqrt{2}y)=\pm 1, so changing our basis to u=x-\sqrt{2}y, v=x+\sqrt{2}y, we see that (u,v) is a lattice point from

\left(\begin{array}{c}v\\u\end{array}\right) = x \left(\begin{array}{c}1\\1\end{array}\right)+ y \left(\begin{array}{c}\sqrt{2}\\-\sqrt{2}\end{array}\right)\in span_\mathbb{Z} \{\left(\begin{array}{c}1\\1\end{array}\right),\left(\begin{array}{c}\sqrt{2}\\-\sqrt{2}\end{array}\right) \}

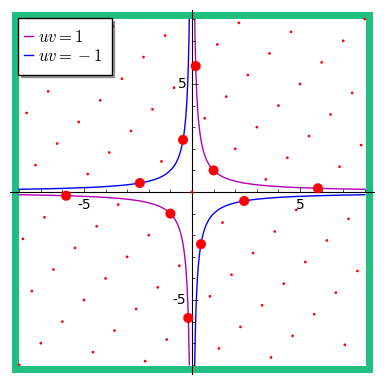

and we’re looking for such point which satisfy uv=\pm 1. In other words, instead of working with a “normalized lattice” \mathbb{Z}^2 and with “weird” hyperbolas, we work with a “weird” lattice and “normalized” hyperbolas.

We are thus led to consider the map \mathbb{Z}[\sqrt{2}]\to \mathbb{R}^2 defined by a+b\sqrt{2} \to (a+b\sqrt{2},a-b\sqrt{2}) which is injective and its image is exactly the right lattice above. Note that just sending \mathbb{Z}[\sqrt{2}] to its embedding in \mathbb{R} will produce a dense subset, so in a sense we added one more dimension to counter this problem (actually, the fact that it is dense is exactly why the argument that x^2-y^2=n has only finitely many solutions doesn’t work here). Now that we have an embedding of the ring as a lattice, we can ask what does it mean that it has a lattice point on the hyperbolas uv=\pm 1.

The function \sigma(a+b\sqrt{2})=a-b\sqrt{2} has the same role here as the complex conjugation z\mapsto \overline{z} has in \mathbb{Z}[i]. It is an automorphism of the ring, i.e. it is invertible (with itself as an inverse) and it satisfies \sigma(zw)=\sigma(z)\cdot \sigma(w) and \sigma(z+w)=\sigma(z)+ \sigma(w). Furthermore, if z=a+b\sqrt{2}\in \mathbb{Z}[\sqrt{2}], then z\sigma(z)=a^2-2b^2 \in \mathbb{Z}. By the definition we have above, an element u\in \mathbb{Z}[\sqrt{2}] is sent to (u,\sigma(u)) and we ask what does it means that u\sigma(u)=\pm 1.

Clearly, if u\sigma(u)=\pm 1, then u is invertible with inverse \pm \sigma(u). On the other hand, if u is invertible, then uv=1 for some v, and applying \sigma we get that \sigma(u)\sigma(v)=1 also. Multiplying these two equations we obtain that u\sigma(u)\cdot v\sigma(v)=1 – a product of two integers equals one, so u\sigma(u), v\sigma(v) \in \{\pm 1\}.

We conclude that an element is sent to a lattice point on uv=\pm 1 if and only if it is invertible – this is the algebraic interpretation of this geometric property. Furthermore, if u is invertible, then so is  u^n for any n\in \mathbb{Z}. It doesn’t yet means that we have infinitely many lattice points on uv=\pm 1, since we might have u^n=1 for some n (e.g. (-1)^2=1), but we are quite close. Searching a little bit, we see that u=1+\sqrt{2} is invertible (with inverse -\sigma(u)=-(1-\sqrt{2})), and moreover |u|>1. It then follows that |u^n|=|u|^n\to \infty so we can find infinitely many points on uv=\pm 1, or in other words, we have just used an extension of \mathbb{Z} (or equivalently of \mathbb{Q}) to show that x^2-2y^2=1 has infinitely many distinct solutions! Also, there was nothing special about 2 – for any d>0 which is not a square (why?), if you can find a single nontrivial (\neq (\pm 1,0)) solution to x^2-dy^2=\pm 1, then you can find infinitely many distinct solutions (try to see if you can prove this result without using the algebraic interpretation, i.e. the multiplicative structure of the set of solutions). We are left to ask whether we can find a single nontrivial solution, or in other words, find the group of invertible elements in \mathbb{Z}[\sqrt{d}] which correspond to integer solutions of x^2-dy^2= \pm 1. These equations for d>1 nonsquare integer are called Pell’s equations.

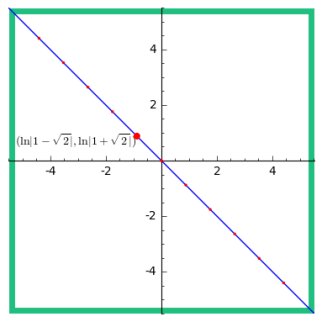

Going back to our example with the ring \mathbb{Z}[\sqrt{2}], it can be viewed as a lattice inside \mathbb{R}^2 and its invertible elements are exactly the lattice points on uv=\pm 1, and moreover there are infinitely many such points. While the hyperbolas uv=\pm 1 are “normalized” they are still not that easy to work with, and we rather work with straight lines than these hyperbolas (or algebraically speaking, we prefer addition to multiplication). Thus, we use the standard trick to move from multiplication to addition – the logarithm. Given a point (u,v) on uv=\pm 1, we send it to (\ln|u|, \ln|v|)\in \mathbb{R}^2. The condition uv=\pm 1 implies that \ln|u|+\ln|v|=\ln|uv|=\ln(1)=0 so that these points lie on the 1-dimensional subspace  \mathbb{R}^2_0 =\{(x,y) \mid x+y=0\} \leq  \mathbb{R}^2. The fact that the invertible elements form a group, imply that their images in \mathbb{R}^2_0 form an additive subgroup. Finding a nontrivial solution (=invertible element) is equivalent to show that this group is not trivial, and at least in the case \mathbb{Z}[\sqrt{2}] we see that this group is actually a lattice in \mathbb{R}^2_0.


Everything mentioned up until now is not special for \mathbb{Z}[\sqrt{2}] and is true in much greater generality. I will finish this post with the formulation of these general results, which are due to Dirichlet.

Definition: Let K/\mathbb{Q} be a finite extension. A unital subring R\leq K is called an order if

  1. The ring R together with \mathbb{Q} generate K (“not too small”).
  2. As an abelian group we have that R\cong \mathbb{Z}^n where n=[K:\mathbb{Q}] (“not too big”).

Example: The rings \mathbb{Z}[i],\mathbb{Z}[\omega],\mathbb{Z}[\sqrt{2}] inside \mathbb{Q}[i],\mathbb{Q}[\omega],\mathbb{Q}[\sqrt{2}]. Similarly we can take the rings \mathbb{Z}[2i],\mathbb{Z}[7\omega],\mathbb{Z}[2+3\sqrt{2}].

If K/\mathbb{Q} is a finite extension of degree n, then it can be shown that there are exactly n distinct homomorphisms \sigma_i:K\to \mathbb{C}. We let r be the number of such maps with \sigma_i(K)\subseteq \mathbb{R} and 2s be the number of maps that don’t satisfy this condition (each such map comes with its complex conjugate), so that n=r+2s.

In the examples we used so far, we only had two embeddings – the identity and the conjugation (both in the “complex” cases like \mathbb{Z}[i],\mathbb{Z}[\omega] where r=0,s=1, and in the “real” case like \mathbb{Z}[\sqrt{2}] where r=2, s=0). You should check that the definition and theorem below, when restricted to these example, are exactly what we proved in this post so far.

Definition: Let K/\mathbb{Q} be a finite extension. Let \sigma_1,...,\sigma_r be its real embeddings and \tau_1, \overline {\tau_1},...,\tau_s,\overline{\tau_s} be its nonreal embeddings. Define

\psi_K:K\to \mathbb{R}^r\times \mathbb{C}^s,\ \ \ \psi_K(\alpha)=(\sigma_1(\alpha),...,\sigma_r(\alpha),\tau_1(\alpha),...,\tau_s(\alpha)).

\psi^\times_K:K^\times\to \mathbb{R}^{r+s},\ \ \ \psi^\times_K(\alpha)= (\ln|\sigma_1(\alpha)|,...,\ln|\sigma_r(\alpha)|,\ln|\tau_1(\alpha)|,...,\ln|\tau_s(\alpha)|).

We are finally ready to state the theorem for general field. Parts (2) and (3) are usually called Dirichlet’s unit theorem.

Theorem:  Let K/\mathbb{Q} be a finite extension and let R\leq K be an order. Then

  1. \psi_K(R) is a lattice in \mathbb{R}^r\times \mathbb{C}^s\cong \mathbb{R}^n.
  2. \psi^\times_K(R^\times) is a lattice in \mathbb{R}^{r+s}_0=\{(x_1,...,x_{r+s}) \mid \sum x_i =0\}.
  3. We have that R^\times \cong \mu(R)\times \mathbb{Z}^{r+s-1} where \mu(R) is the finite cyclic group of all the roots of unity in R.

Remark: Going back to the problem of solving the equation x^2-dy^2=\pm 1, the theorem above not only tells us that there are infinitely many such solutions (for d>1 square free), in a sense they are all generated by one solution. In this case s=0, r=2 so that \mathbb{R}^{r+s}_0=\mathbb{R}^2_0=\{(x,-x) \mid x\in\mathbb{R}\} is a one dimensional space. In the case of d=2, every solution arises from an element of the form \pm (1+\sqrt{2})^k for k\in \mathbb{Z}.

Somewhere in the beginning of this post I mentioned Fermat’s last theorem\conjecture, but this was a long time ago and as this is already a long post I will leave it for a future post.
